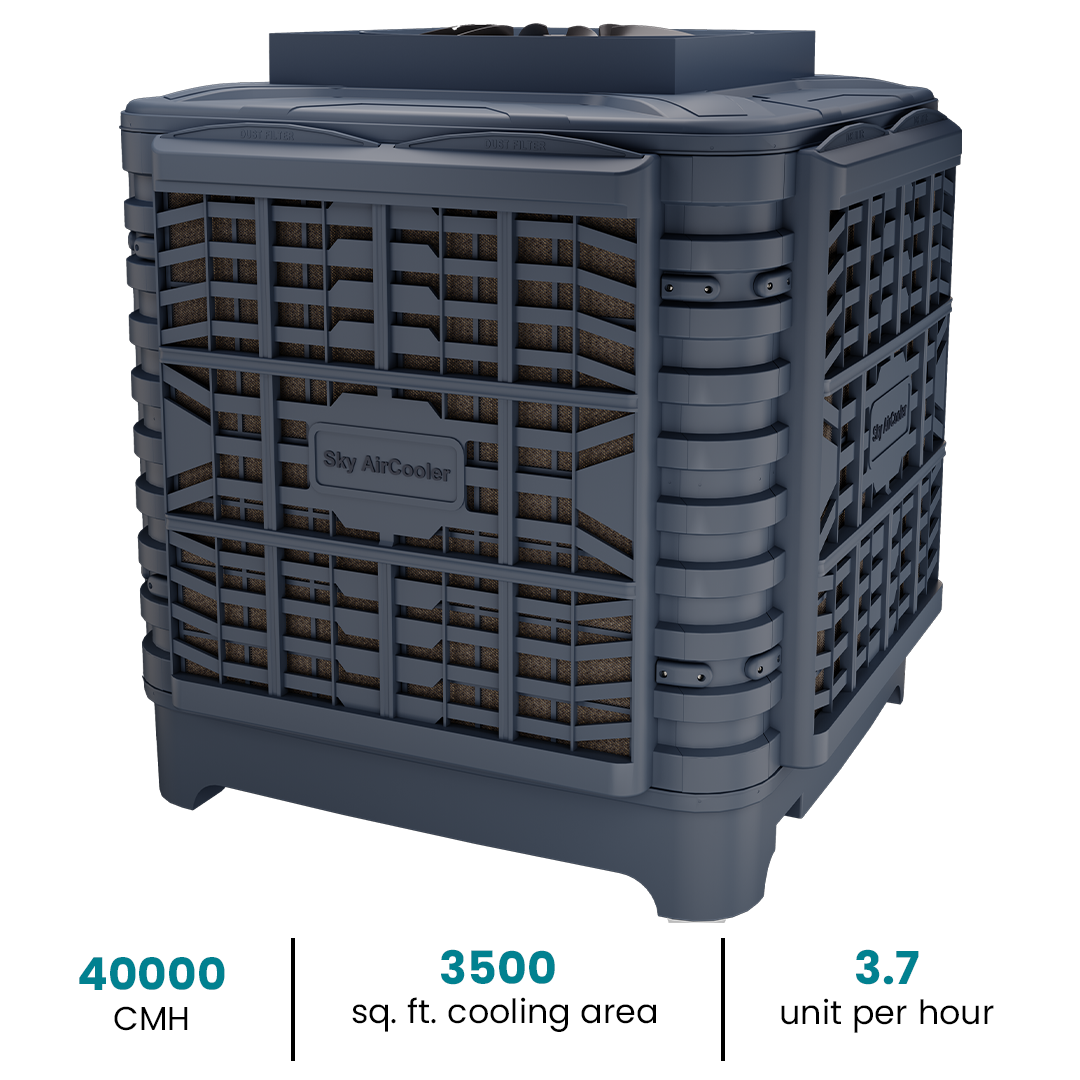

Neptune Top Discharge Air Cooler

Heavy Duty Air Cooler

40000 CMH

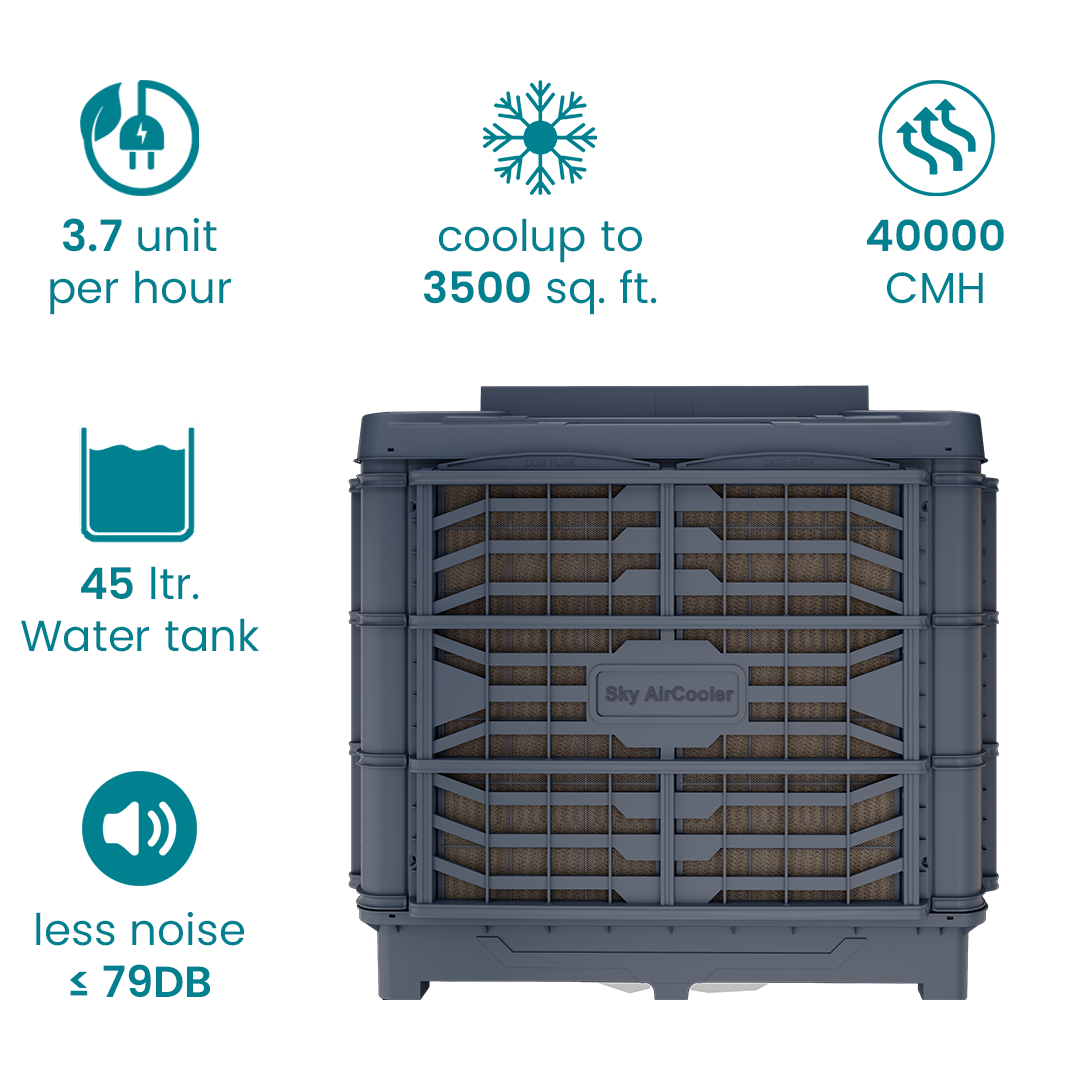

The Neptune Air Cooler is a high-performance cooling solution designed for industrial and commercial spaces. With an impressive airflow capacity of 40,000 CMH, it effectively cools areas up to 3,500 sq. ft. Its energy-efficient 3.7 kW motor, durable 8-blade axial fan, and robust air pressure ensure optimal cooling performance. Equipped with a 45-liter water tank, manual/auto drain options, and a built-in dust filter, it delivers fresh, clean air while minimizing maintenance. Compact and versatile, the Neptune Air Cooler is ideal for large-scale cooling needs with flexible installation options and low noise operation.

Technical Specification of Neptune Top Discharge Air Cooler

Particulars Neptune Air Cooler
Airflow (M3/H) 40000 CMH
Discharge Top Discharge
Cooling Area (Sq. Ft.) 3500 Sq. Ft.
Air Pressure (P.A.) 400
Motor (V/Hz) 380 to 415v / 50Hz / 60Hz
Power (Kw) 3.7
Phase Three
Speed Single
Fan Type Axial (8 Blade)
Controller: Single Speed / Multi Speed
RPM 1440
Pad Size (MM) 975 x 885 x 120
Water Tank (LTR.) 65
Water Drain Manual / Auto
Noise (DB) <79
Net Weight (Kg) 145
Dust Filter Yes
Air Outlet Size (MM) 765 x 765

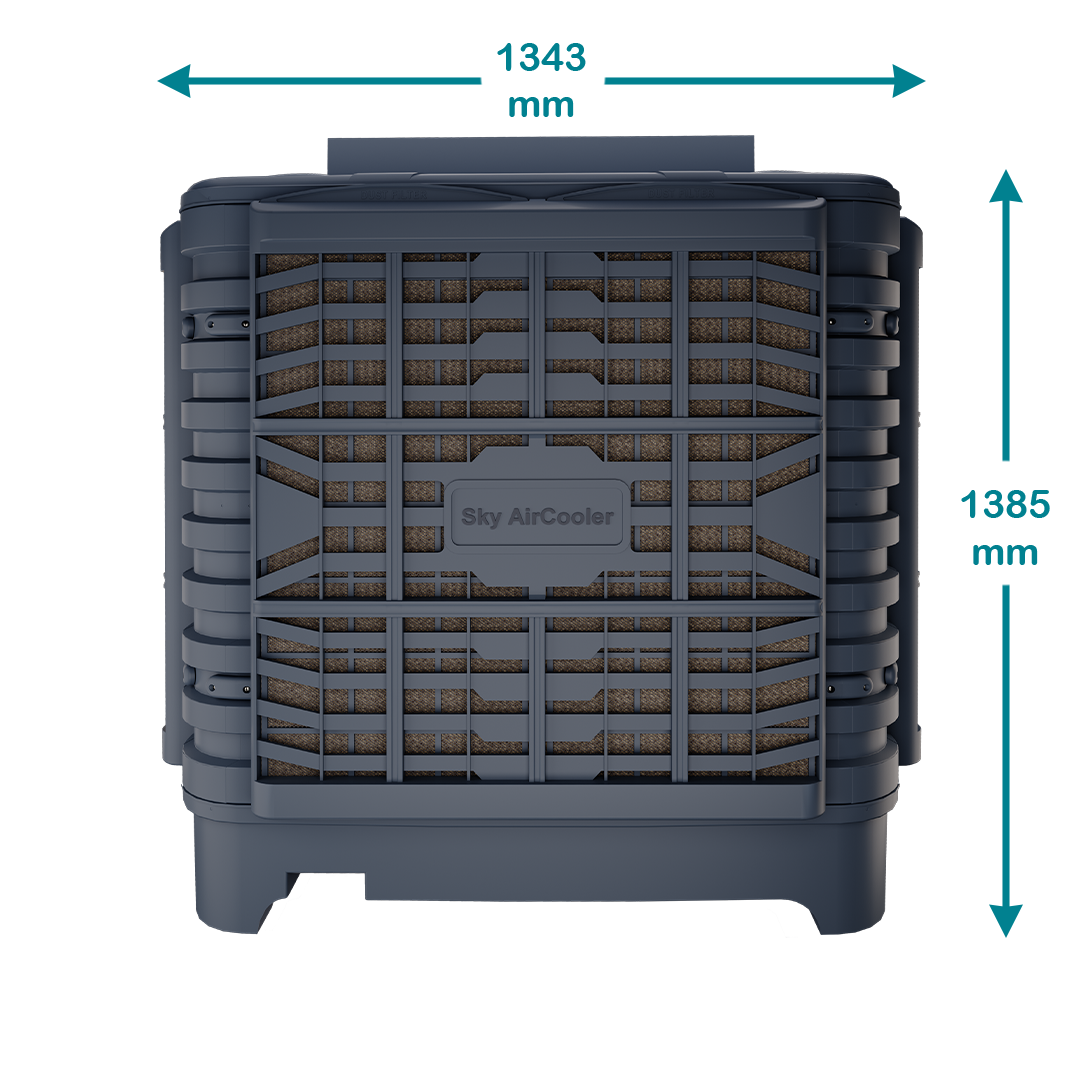

Dimension LxWxH (MM) 1343 x 1343 x 1385
Qty Full (40Hq) 9
Qty/SKD (40Hq) 39

Advantages of Neptune Top Discharge Air Cooler

  • High Airflow: Offers an impressive airflow capacity of 40,000 CMH, ideal for large spaces.
  • Flexible Discharge Options: Features top and bottom discharge for versatile installation.
  • Large Cooling Area: Effectively cools areas up to 3,500 square feet.
  • Robust Air Pressure: Ensures optimal air circulation with a pressure rating of 370 P.A.
  • Efficient Motor: Operates on a motor range of 380-415V and 50/60Hz, providing stable performance.
  • Energy Efficient: Requires only 3.7 kW of power, saving on electricity costs.
  • Durable Fan Design: Equipped with an 8-blade axial fan for consistent airflow at 1440 RPM.
  • Ample Water Capacity: Comes with a 45-liter water tank for extended cooling operations.
  • Noise Control: Operates at a noise level below 79 dB, ensuring a quieter environment.
  • Durable & Sturdy Build: With a weight of 145 kg (top) or 139 kg (bottom), it is designed for stability and reliability.
  • Convenient Water Drain: Offers manual and auto water drain options for ease of maintenance.
  • Integrated Dust Filter: Ensures cleaner and fresher air by filtering out dust and particles.
  • Compact Design: Dimensions of 1343 x 1343 x 1385 mm make it suitable for various industrial and commercial setups.
  • High Capacity for Shipping: Accommodates up to 45 units (SKD) or 9 full units per 40HQ container.

Features of Neptune Top Discharge Air Cooler

air-cooler
Plastic Injection Molding Body

Made from UV-resistant material, this durable cabinet withstands temperatures from -40°C to 96°C, ensuring over 10 years* of reliable outdoor use.

motor
World's Best High Torque Motor

The motor is maintenance-free, dust and moisture-proof, and can help save up to 100% on your electricity bill. It can be used continuously, with the ability to stop for up to 24 hours when needed.

honey-comb-cooler-pad
5090 Honey Comb

Cellulose Wet Pad Worls's Best Quality Pads Imported from Finland With Anti Bacterial Resins & 4X Longer Life Than Any Other Pad(Last Upto 5 Yrs.*).

top-bottom-discharge
4D Technology (Top & Bottom Discharge)

Sky Air Cooler is The Only Brand Which Gives 4D Cooler in Movable & Ductable Cooler.

axial-fan
Turbo Axial Fan

Sky Air Cooler is The Only Brand Which Gives Turbo Axial Fan for World's Most Powerful Air through & Very Low Noise.

The Neptune Top Discharge Air Cooler from Sky Air Cooler is a powerful and efficient cooling solution for both industrial and commercial spaces. As a leading Neptune Top Discharge Air Cooler Manufacturer, we ensure superior performance with an airflow capacity of 40,000 CMH, capable of cooling areas up to 3,500 sq. ft. This air cooler features an energy-efficient 3.7 kW motor and a durable 8-blade axial fan that ensures consistent, optimal performance. The robust air pressure and 45-liter water tank make it highly effective, while the manual/auto drain options and built-in dust filter maintain the air’s quality with minimal upkeep. Designed for easy installation and operation, the Neptune Top Discharge Air Cooler offers versatility with low noise levels, making it ideal for large-scale cooling applications. Sky Air Cooler’s Neptune Air Cooler combines efficiency and reliability for all your industrial cooling needs.

High-tech Parts We Used

High Torque Motor

Digital MCB

Heavy Duty Drive

Honey Comb Pad

Turbo Axial Blade

Auto Drain Wall

Modular Indoor Grill

High Pressure Pump
