10+ Years Cabinet Life
UV-resistant engineering plastic body that does not rust, chalk or crack under a decade of direct sun.
22,000 CMH over 2200–2500 sq. ft., built in top and bottom discharge from the same cabinet.

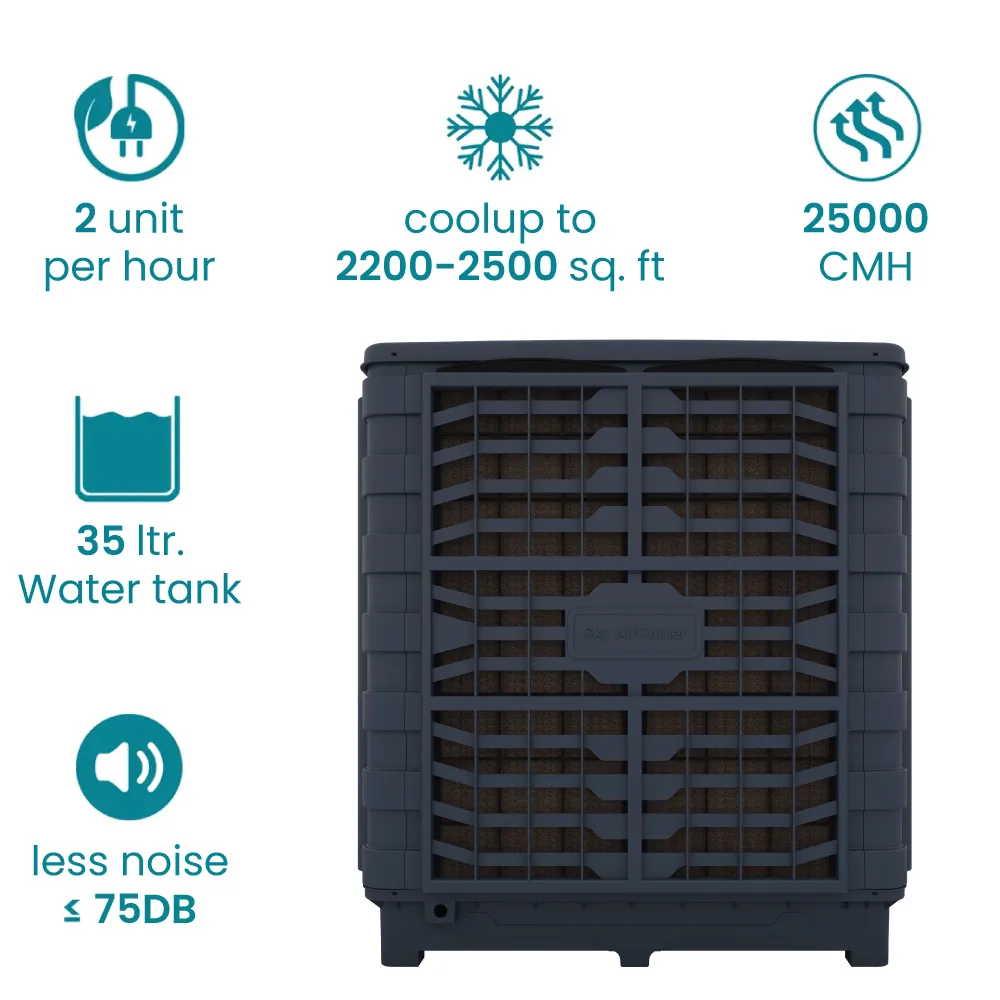

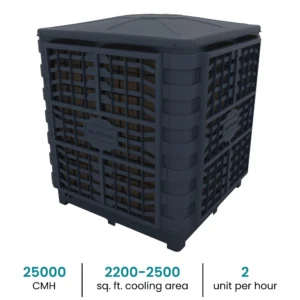

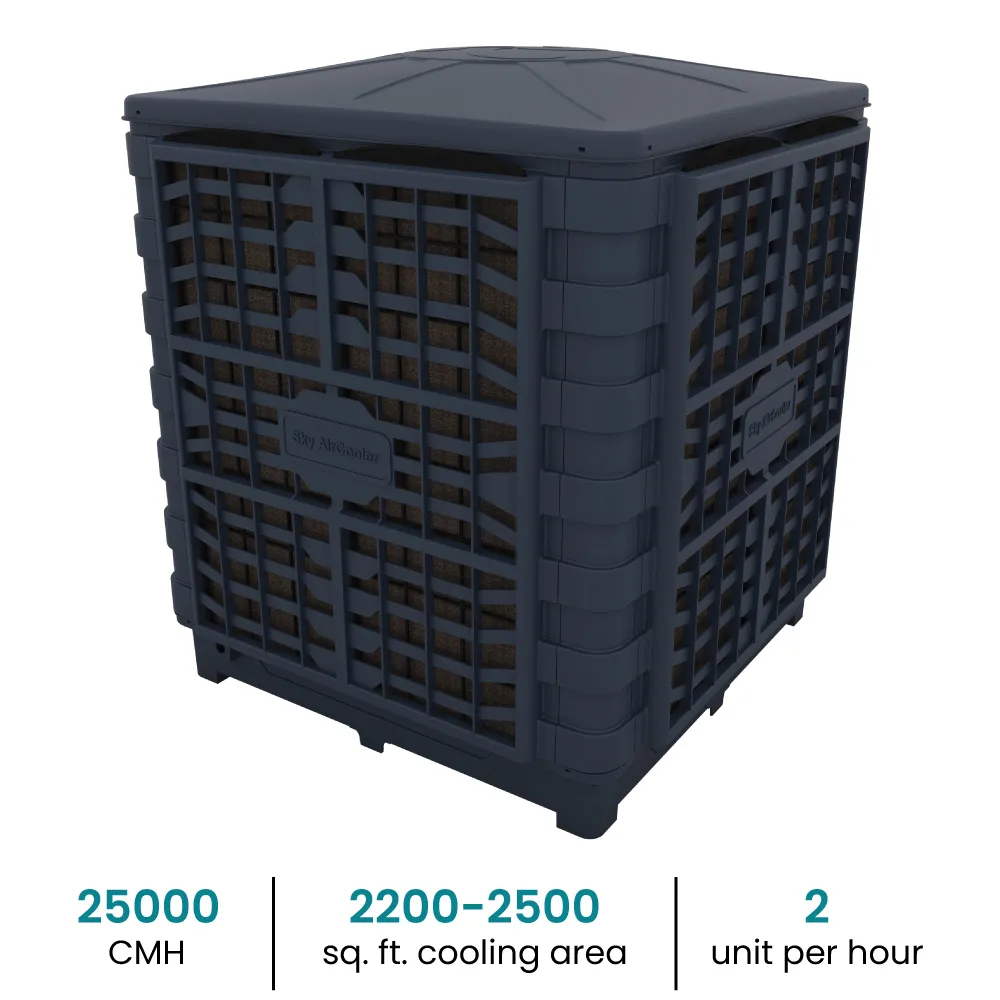

The Jupiter Top/Bottom Discharge Air Cooler from Sky Air Cooler is built to provide powerful and efficient cooling for large industrial and commercial spaces. With an air delivery rate of up to 22,000 m³/hr it effectively cools areas as large as 2,200 – 2,500 sq. ft. The cooler is equipped with a high-quality honeycomb cooling pad for superior cooling performance.
Its fully automatic control panel allows easy adjustment of speed and cooling settings, so the unit can be matched to the floor it serves. Built with robust, durable materials, the Jupiter is designed for long service - a reliable, energy-efficient and eco-friendly answer to a large cooling load.
Every figure below is from the published sheet for this model - nothing interpolated.
What is actually built into a Jupiter - the parts that decide how long it lasts, how much it draws and how often anyone has to touch it.
UV-resistant engineering plastic body that does not rust, chalk or crack under a decade of direct sun.
High-torque 1.8 kW motor built to run a full season unattended, with no greasing schedule to keep.
Honeycomb wet pads imported from Finland - a longer service life and a deeper temperature drop than local media.
The same cabinet is built in top and bottom discharge, so the unit suits the duct route you already have.
4 Blade axial wheel at 1400 RPM - high volume at 250 Pa static, and noticeably quieter than a centrifugal of the same duty.
Level indicator, automatic filling and a remote control, so nobody has to climb to the unit to run it.
Sealed air conditioning fights an open shed - every door and shutter leaks the cold away. Evaporative cooling works with the building instead: it draws fresh air in, drops its temperature through wet pads and pushes the hot, stale air out. That is why a Jupiter runs a floor of this size on a fraction of the connected load an equivalent AC would need.
Size It for My ShedThe five things buyers ask us most about this model. Anything not covered here, pick up the phone - we would rather talk it through than have you guess.
+91 90330 00463It delivers approximately 22,000 CMH of cool, fresh air - enough for large factories, warehouses and commercial halls. Talk to us to confirm the right capacity for your particular area.
It is designed for large or semi-open areas - factories, warehouses, workshops, assembly units and big commercial halls, anywhere affordable fresh-air cooling is needed. One unit covers 2200 – 2500 sq. ft..
Being evaporative, it uses up to 80–90% less electricity than refrigerated air conditioning. The connected load is 1.8 kW, so running cost stays very low even across a large floor.
Yes. Like every evaporative cooler it passes air through wet cooling pads, and it performs best with cross-ventilation - open windows or exhaust fans - so a continuous flow of cooled fresh air moves through the space.
The Jupiter is quoted per project. We manufacture in Gujarat and export to 45+ countries - request a price through the enquiry form or call +91 90330 00463 for bulk, export and dealer enquiries.
Top Discharge
Bottom Discharge
Top Discharge
Share your area and industry - we will revert with a layout suggestion and a clear quotation.
